AOYUE Int968 SMD Rework Station Hot Air Soldering Station Extraction 129,09 ¤
Inkl. 19% MwSt, zzgl.

STAFFELPREISE
ab 2 St. 118,29 ¤
ab 4 St. 112,89 ¤

Versandkosten (DE) 5,50 ¤
Weitere Versandkosten
Product No.: 90968
Print product data sheet
Shipping time: 2-3 Days 2-3 Days **

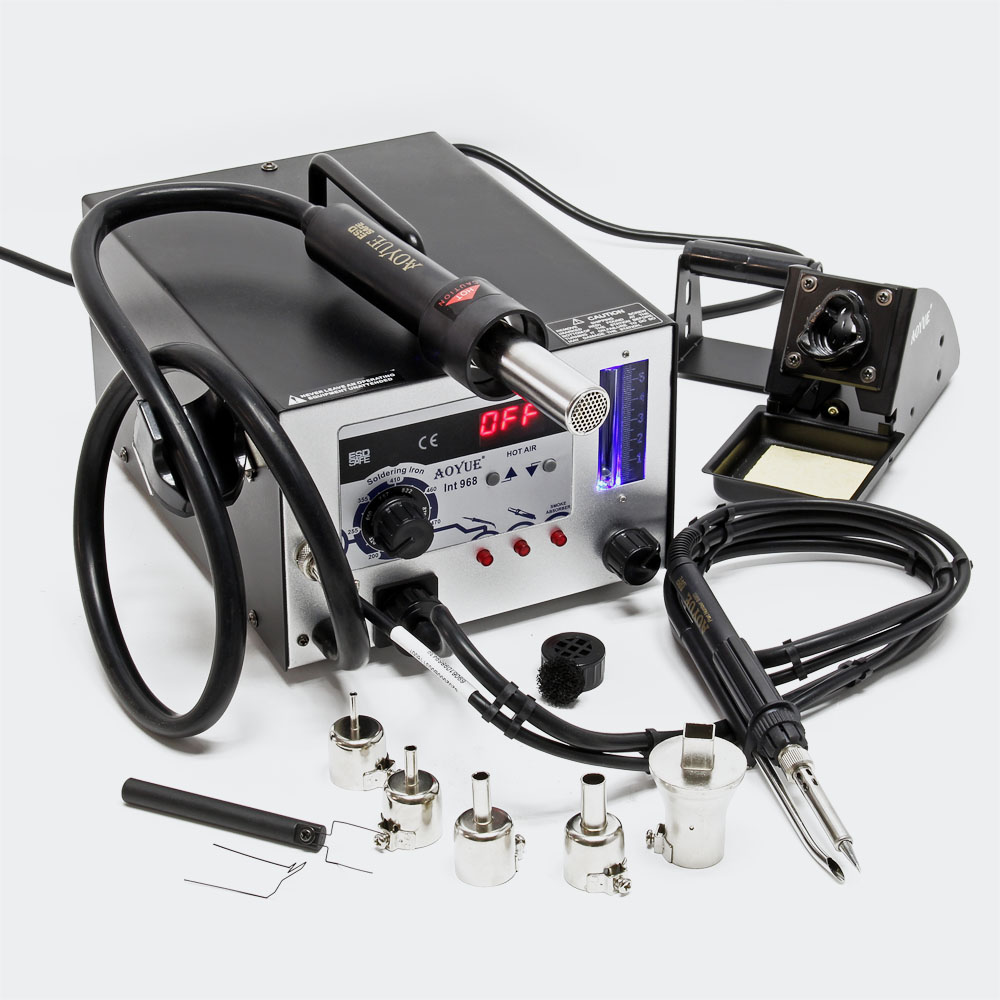

Hot Air Rework Station
AOYUE - 968


Hot Air Gun / Soldering Iron & Smoke Absorber

Reworkstation Heißluftstation Lötkolben Heißluft



Description






Aoyue Reworkstation
Non-contact soldering. The air volume and the temperature can be set or adjusted in a wide range, the nozzles can be easily replaced so that each component is soldered by using the suitable nozzle, air and temperature setting. Heating elements and nozzles conform to international standard; suitable for the most SMD components, for instance LEDs, SOIC, CHIP, QFP, PLCC and BGA.



The antistatic design of the 968 prevents PCBs and electronic components from being damaged due to static charging. he control panel as well as the whole rework station are easy manageable. The built-in smoke absorber extracts the fume directly at the source where it is generated.


The Auto Cooling Function blows cold air on the heating element when the hot air is switched off until reaching a low temperature in order to extend the life of the heating element. The repairing system can also be used for heat shrink-tubing and is indispensable in the filed of chiptuning, repairing mobile phones, laptops and video game consoles. The built-in smoke absorber delivers a constant smoke exhaust of 150g (600mm Hg). Fume extraction is mandatory according to workplace regulations §53 in Germany to avoid respiratory diseases.

blows cold air on the heating element when the hot air is switched off until reaching a low temperature in order to extend the life of the heating element. The repairing system can also be used for heat shrink-tubing and is indispensable in the filed of chiptuning, repairing mobile phones, laptops and video game consoles.

high heating capacity
very fast heating
precise adjustment possibilities
auto cooling and follow up phase
SMD fine soldering iron with pointed tip e 0,4mm
Blow nozzles in accordance with international standard
suitable for SOIC, CHIP, QFP, PLCC, PSOP, SSOP, BGA etc.





Technical data


Hot Air Station:

Rework Station:
Power input 230V/50Hz
Power consumption 500 W
Pump Diaphragm Pump
Temperature (rotary knob adjustmnet) 100°C-480°C
Air Flow Rate max. 23 l/min
Heating element Metal core element (Art. 90103)
Nozzles 1x 4-square nozzle
3x round nozzles: 3mm / 5mm / 11mm
Nozzle to ground resistance < 2 Ohm
Hot air noozzle
Datenblatt
Overview



Soldering Station:

Main-Station:
Input voltage 230V/50Hz
Power consumption (total) 535 W
Size 245 x 185 x 135 mm
Soldering Iron:
Output voltage 24V/AC
Power consumption 35 W
Tip to ground potential < 2mV
Tip to ground resistance < 2 Ohm
Heating element ceramic heating element (Art. 90101)
Temperature adjustmnet via roary knob 200°C-480°C
Supply line 1,2m
Weight 25 - 44g
Soldering tips
Datenblatt
Overview



Fume extraction:

Smoke absorber (max.) 150g / 600mm Hg


The station is delivered with a transport safety (a red cross screw that secures the pump during transport), diese must be removed before using the station for the first time! After removing the safety transport the sation is fully operational. You need only 5 minutes to remove the red cross screw and then you have a functional station.


Delivery content

Hot Air Nozzles

AOYUE HotAir Nozzle

Article
Form
Data
91124
Round
Diameter: 2,5mm
91130
Round
Diameter: 4,4mm
91197
Round
Diameter: 8,5mm



Heißluftdüse, HotAir Nozzle

Article
Form
Data
91313
square

13x13
IC-Box BGA: 12x12



Soldering tips

SolderingTip

Article
Length
Data
91210
17mm

Diameter: 0,8mm
Type: chisel




+ 1 Smoke absorber
+ 1 Soldering iron holder
+ 1 Hot air gun holder



We reserve the right of technical changes!
Due to further developments, illustrations, specifications and technical data may vary slighty.






Customer reviews:

Author: Visitor 15.01.2012
Evaluation:TEXT_OF_5_STARS

It is very good piece of equipment and I am glad that I bought.
